Overview of the Path Search Exercise

The Path Search feature is a sophisticated tool that allows operators to conduct an in-depth analysis of network reachability and device behavior. It supports exploration of all possible network paths from any source to any destination, accommodating a variety of protocols, layer-4 ports, and packet header details. This functionality is crucial for understanding network traffic dynamics, identifying potential issues, and optimizing network performance.

tip

Example mnemonics like f(internet)(tp_dst.HTTPS)z(delivered) can be pasted into the search bar to define a search.

Estimated Completion Time​

20 minutes

Exercise and Steps​

tip

Clear the search bar when pasting new search patterns

clearQuery

Objective: Conduct an open-ended search to find all L4 destination ports that are deliverable from the Internet.

  1. Search Input: Paste f(internet)z(delivered) into the search bar.

    f(internet)z(delivered)

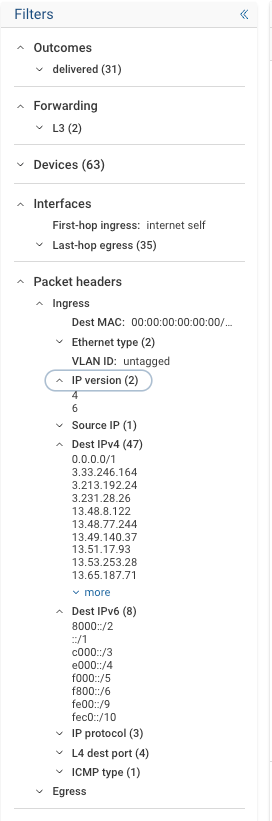

  2. Filter Utilization: Open the Filters component on the left to view all related headerspace information.

    filters

  3. Examine headerspace filters

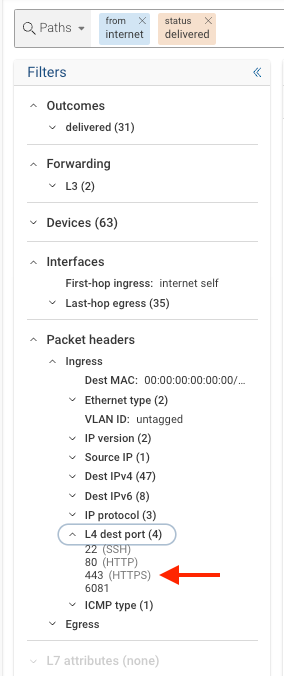

  4. Adding L4-Dest-Port Filter

    • Enhance the search by adding an l4-dest-port filter.

    headers

  5. Search Modification: Notice the search bar has now changed with the updated L4 destination port filter

    note

    Notice that all (4) ports listed under L4 dest port are deliverable from the Internet img.png

  6. Path Groups: Examine all the possible flows by toggling through the Path Groups

    note

    Observe the number of path groups identified.

    pathgroups

Exercise 2: Specifying Dest-IP Filter​

Objective: In this exercise we will refine our search to filter all paths with a destination IP

  1. Search Refinement: Copy and Paste the following into the search bar

    f(internet)(tp_dst.443)(ipv4_dst.190.37.14.120)z(delivered)

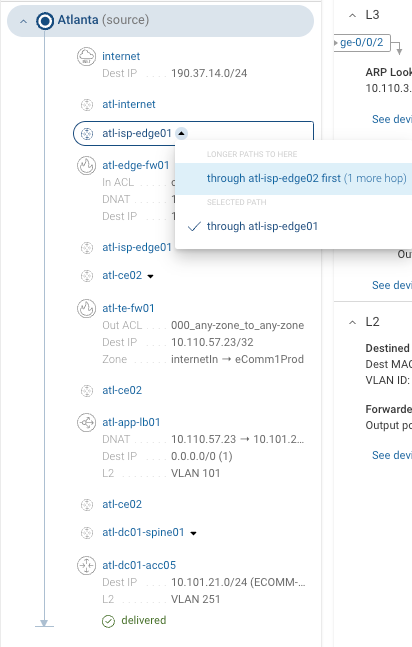

  2. Alternate Path Selection: For hop atl-isp-edge-01, click on the device name and select through atl-isp-edge02 for an alternate path.

    through

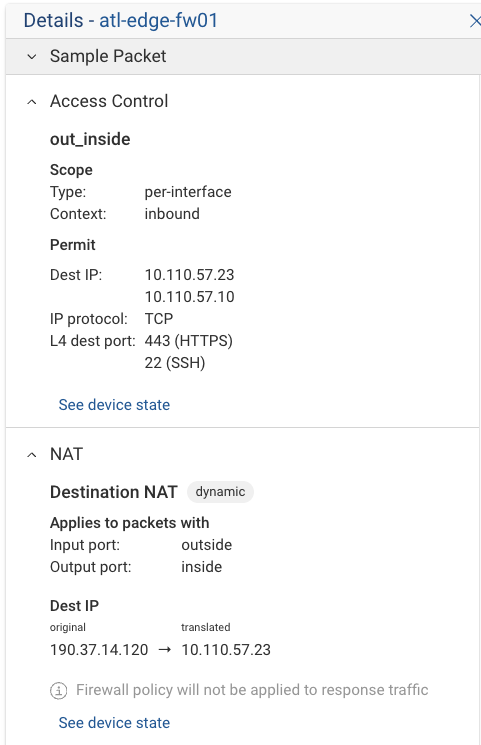

  3. Policy Review: At hop atl-edge-fw-01, examine the ACL and NAT policies. Notice the normalization of data and the highlighted relevant lines in the policy?

    Exercise 3

Exercise 3: Using To Instead of Dest-IP​

Objective: Compare the results of using To versus Dest-IP in a search.

  1. Initial Search: Copy below into the search bar

    f(internet)t(10.101.10.3)

  2. Modified Search: Change the query to below and evaluate the difference

    f(internet)(ipv4_dst.10.101.10.3)
    note

    Evaluate the results and differences between using To and Dest-ip. Consider if 10.101.10.3 should be reachable from the internet.

    See: Search Keywords

Exercise 4: Leveraging Bypass Mode​

Objective: Test alternate paths by utilizing bypass mode.

  1. Bypass Mode Activation: Copy below into search bar

    f(internet)(ipv4_dst.190.37.14.120)(tp_dst.HTTPS)b(atl-dc01-spine01)z(delivered)

Exercise 5: Leveraging Permit-ALL Mode​

Objective: Assess reachability and security outcomes using permit-all mode.

  1. Permit-All Mode Search: Copy below into search bar

    f(.nsx_vsw_host_001)(ipv4_dst.10.5.20.12)(tp_dst.22)

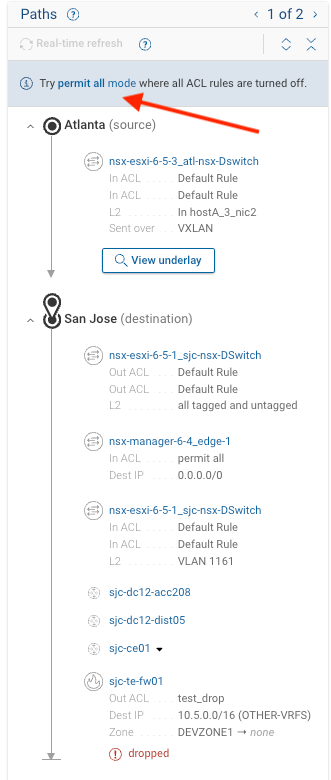

  2. Select Permit All Mode

    Permit-All

    note

    Note the bypass of firewall deny rules, allowing for continued reachability testing.

  3. Determine the reachability outcome and identify which firewalls were blocking the traffic.

Key Insights​

  • Detailed Exploration: Path Search facilitates a thorough examination of network paths, enhancing understanding of traffic flow and device behavior.
  • Comprehensive Insight: The feature provides extensive information through interactive exploration, revealing underlying data and configurations.
